Sell Gepon-1GE Auto-adaptive RJ 45 Port+1Pon SC Interface Po

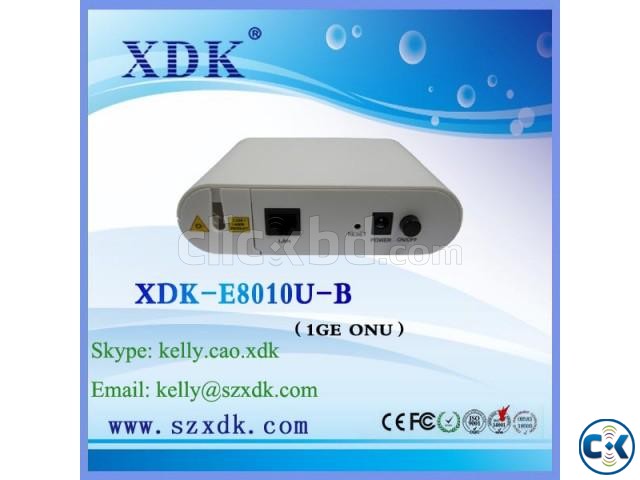

XDK-E8010U-B

　　　XDK-E8010U-B type ONU products fully comply with IEEE 802.3-2005 and the
China Telecom EPON device technical specification (V2.1). It is operative,
manageable and maintainable at telecommunication level, and can provide high
speed data service for customers. It has a PON uplink port that connects to
office end apparatus through optical fiber.
Product features:
Conform to IEEE802.3ah standard
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink
and downlink services
Support frame filtering and suppression
Support standard 802.1Q Vlan function, support VLAN conversion
Support 4094 VLANs (802.1Q)
Support Dynamic Bandwidth Allocation (DBA) function
Support QoS, including traffic flow classification, priority marking, queue and
dispatch, traffic shaping and traffic control, etc
Single ONU supports up to 1 LLID.
Support IGMP Snooping
Support Ethernet port ratelimit loop detection
Support power failure alarm
Support lightning protection for power supply and lightning protection for
service port

Port features:
1 PON ports (1.25G)
1 10/100/1000M port

Physical features:
Power supply: 12VDC
Power consumption: 6W
Temperature:
Working temperature:0～55℃
Storage temperature: -30～60℃
Relative humidity: 10～90% (non-condensing)
