Sell Epon System-1pon port OLT- 19 inches 1U height-FTTH

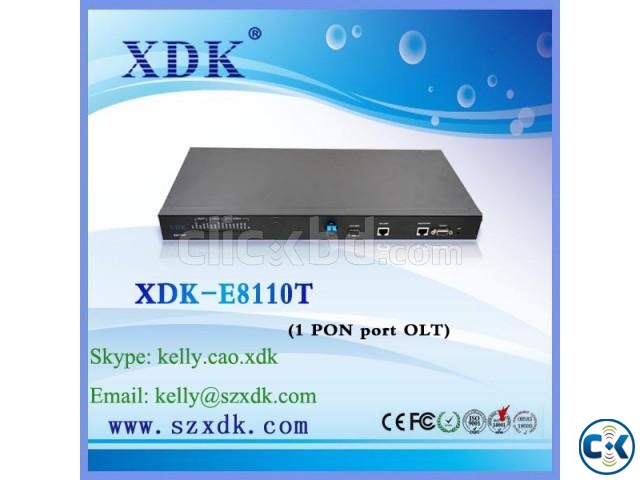

XDK-E8110T is a small scale office end OLT device of FTTX telecommunication level independently researched and developed by XDK Company; it conforms to IEEE802.3-2005 standard; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.

Port features:

1 PON ports (1.25G)
1 uplink ports (1G) (electronic ports and optical ports options)
1 management ports (special software management)
1 console port
Frame: 19 inches 1U height


Product features:

Highly reliable case, strong adaptive capacity to environment
　　　1U case,Good shielding measures.
Layer 2 aggregation switching
Layer 2 wire-speed forwarding; support rich layer 2 protocols
4K MAC address list
Uplink port supports electronic port modules and optical port modules, which can be configured flexibly as required
Perfect network management function
Support GUI based graphical interface。
Support in-band management, out-of-band management
Support online upgrade of device software
Strong QOS function
Support flexible DBA, uplink and downlink traffic rate-limited
Support IP ToS, IEEE802.1p
Port based traffic control, traffic shaping。
Supports up to 256 LLID.
Rich OAM function
Support ONU automatic identification, automatic finding, and automatic registration
Support the function of automatic loop back test to single link
Strong VLAN function, including VLAN Stacking, Trunk, Translation
Support flexible controllable multicasting, support IGMP snooping

Physical features:

Physical dimension: 440×207×43.6 (L×W×H, unit: mm)
Power supply: AC 100-240V
Power consumption: 20W
Temperature:
Working temperature: 0～45℃
Storage temperature: -30～60℃
Relative humidity: 10～90% (non-condensing)
