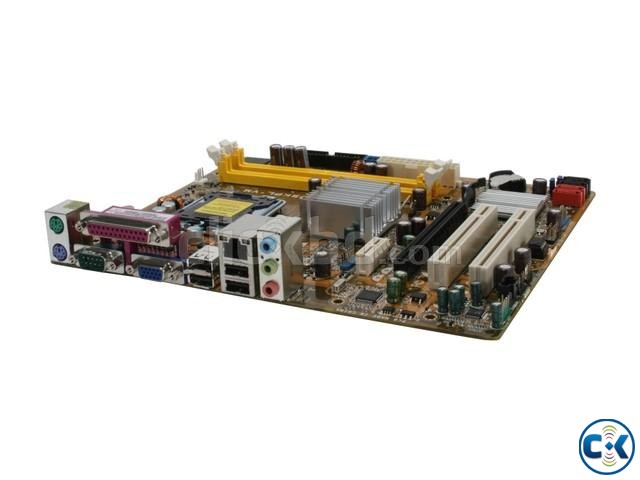

ASUS P5KPL-VM

ASUS P5KPL-VM


Model Brand: ASUS
Model :P5KPL-VM

Supported CPU:
CPU Socket Type: LGA 775
CPU Type: Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium D /Pentium 4 / Celeron D
FSB: 1333/1066MHz Supported CPU Technologies Hyper-Threading Technology

Chipsets: Chipset Intel G31 South Bridge Intel ICH7

Memory:
Number of Memory Slots: 2×240pin
Memory Standard: DDR2 800
Maximum Memory Supported: 4GB
Channel Supported: Dual Channel

Expansion Slots:
PCI Express x16: 1 x PCI Express x16
PCI Express x1: 1 x PCI Express x1
PCI Slots: 2 x PCI Slots

Storage Devices:
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s:4 x SATA 3Gb/s

Onboard Video:
Onboard Video Chipset: Intel GMA 3100

Onboard Audio:
Audio Chipset:Realtek ALC662
Audio Channels: 6 Channels

Onboard LAN:
Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports:
PS/2:2
COM :1
LPT:1
Video Ports:D-Sub
USB 1.1/2.0:4 x USB 2.0
Audio Ports: 3 Ports

Internal I/O Connectors
Onboard USB:4 x USB 2.0

Physical Spec:
Form Factor: Micro ATX
Dimensions (W x L):9.6" x 8.0"
Power Pin: 24 Pin
