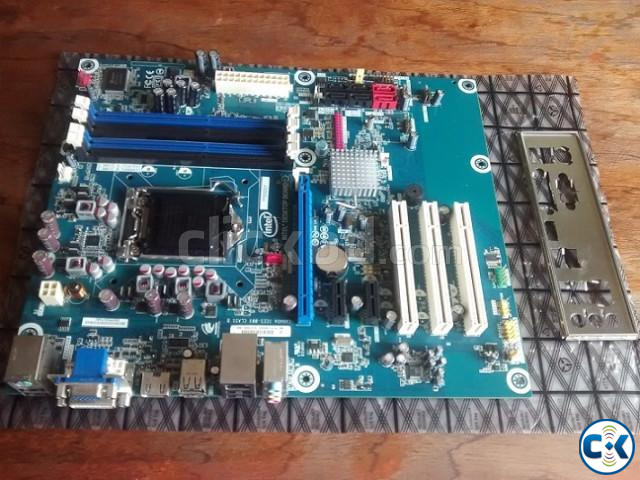

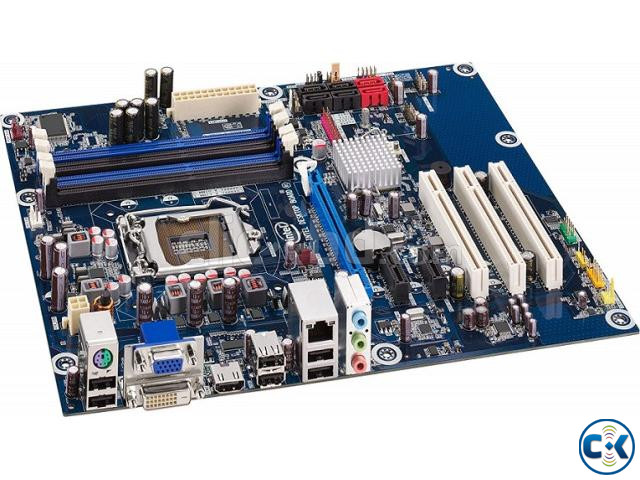

Intel BLKDH55TC LGA 1156 H55 HDMI Micro ATX Motherboard

Intel BLKDH55TC LGA 1156 Intel H55 HDMI Micro ATX Intel Motherboard

LEARN MORE ABOUT THE INTEL BLKDH55TC

Question about the product info?

FEEDBACK

Model

Brand Intel

Model BLKDH55TC

Supported CPU

CPU Socket Type LGA 1156

CPU Type Core i7 / i5 / i3 / Pentium (LGA1156)

Supported CPU Technologies Intel Turbo Boost Technology and

Intel Hyper-Threading Technology

Chipsets

Chipset Intel H55

Onboard Video

Onboard Video Chipset None

Memory

Number of Memory Slots 4x240pin

Memory Standard DDR3 1333/1066

Maximum Memory Supported 16GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 2.0 x16 1 x PCI Express 2.0 x16

PCI Express x1 2 x PCI Express x1

PCI Slots 1 x PCI Slot

Storage Devices

SATA 3Gb/s 6 (Including two onboard eSATA ports)

Onboard Audio

Audio Chipset Realtek ALC888S

Audio Channels 8 Channels

Onboard LAN

Max LAN Speed 1Gbps

Rear Panel Ports

Back I/O Ports 1 x HDMI / 1 x PS/2 / 6 x USB 2.0/1.1

PS/2 1

Video Ports D-Sub + DVI

HDMI 1 x HDMI

USB 1.1/2.0 6 x USB 2.0

Audio Ports 3 Ports

Internal I/O Connectors

Onboard USB 6 x USB 2.0

Physical Spec

Form Factor Micro ATX

Dimensions (W x L) 9.6" x 9.6"
