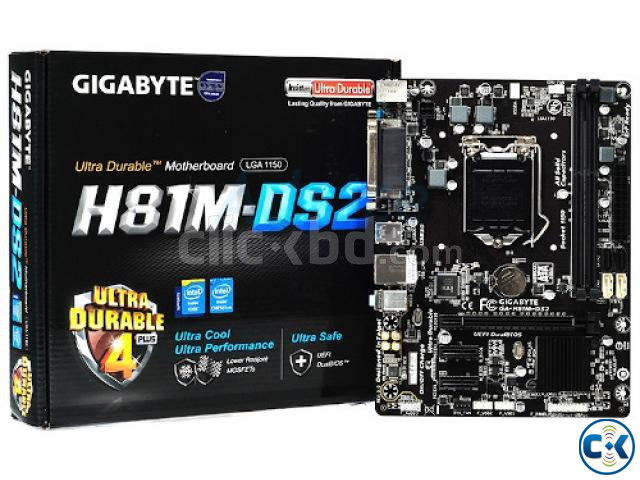

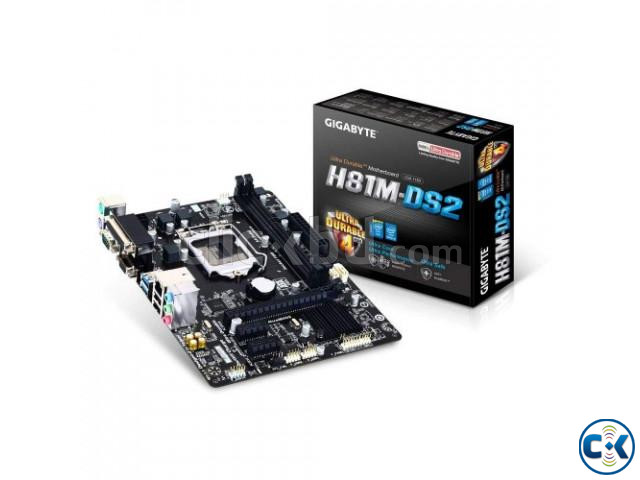

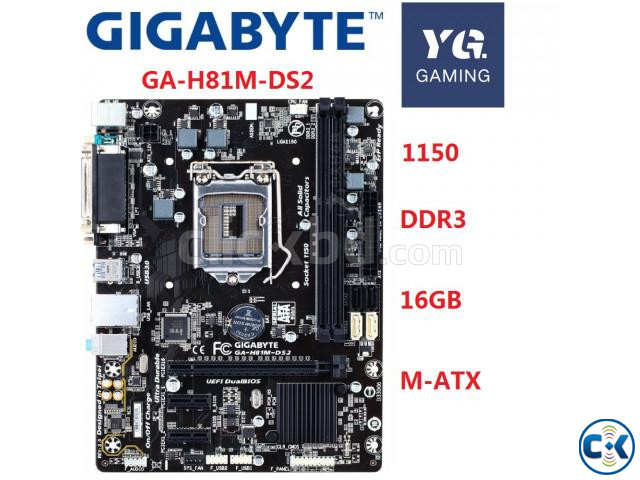

Gigabyte Genuine GA-H81M-DS2 Micro ATX Motherboard

Key Features
Model: GA-H81M-DS2
CPU: 4th Generation Intel Processors
Chipset: Intel H81 Express
2 x 1.5V DDR3
3 x PCI Express slot
Specification
Basic Information
Supported CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
Chipset Intel® H81 Express
BIOS 2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)
Memory
Type Dual channel DDR3 memory architecture
Slots 2 x 1.5V DIMM
Supported Memory Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory 1 GB
Connector & Ports
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
Up to 2 USB 3.0/2.0 ports on the back panel
Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) N/A
Warranty Information
Manufacturing Warranty 03 Years
Description

Gigabyte GA-H81M-DS2 Micro ATX ultra durable motherboard has the compatibility with 4th gen Intel processors. This board also supports dual channel DDR3 maximum 16GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200 Hz for D-Sub port. This basic motherboard has the facility of GIGABYTE On/Off Charge™ for USB devices, LAN with high ESD Protection and USB 3.0 ports with GIGABYTE 3x USB power. This All solid capacitors design board also contain GIGABYTE UEFI DualBIOS™ Technology and LPT, COM, D-SUB port on rear panel.
