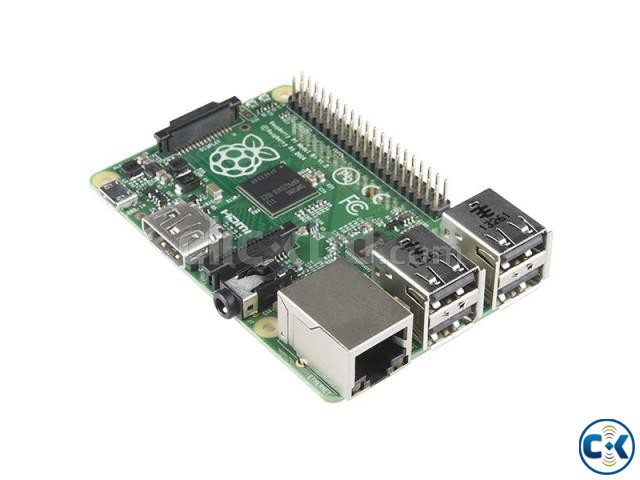

The Model B+’s FOUR built-in USB ports provide enough connectivity for a mouse, keyboard, or anything else that you feel the RPi needs, but if you want to add even more you can still use a USB hub. It is recommended that you use a powered hub so as not to overtax the on-board voltage regulator. Powering the Raspberry Pi is easy, just plug any USB power supply into the micro-USB port. Dimensions: 85mm x 56mm x 17mm Features: Broadcom BCM2835 SoC 700 MHz ARM1176JZF-S core CPU Broadcom VideoCore IV GPU 512 MB RAM 4 x USB2.0 Ports with up to 1.2A output Expanded 40-pin GPIO Header Video/Audio Out via 4-pole 3.5mm connector, HDMI, or Raw LCD (DSI) Storage: microSD 10/100 Ethernet (RJ45) Low-Level Peripherals: 27 x GPIO UART I2C bus SPI bus with two chip selects +3.3V +5V Ground Power Requirements: 5V @ 600 mA via MicroUSB or GPIO Header Supports Debian GNU/Linux, Fedora, Arch Linux, RISC OS and More! |
