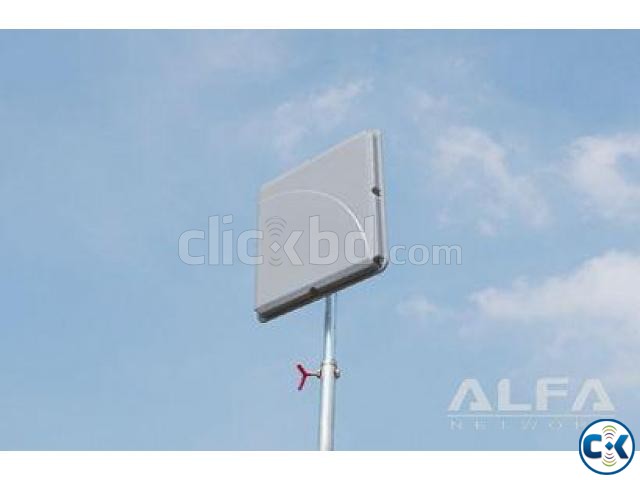

2.4GHz 2x2 MIMO Panel Antenna 19dBi

Item specifics
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging
Brand: ALFA
Supported Wireless Protocols: Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Model: APA 2419
Standard: 802.11 b/g/n
MPN: 4718060300570
Type: Antenna Directivity: Directional
Size: 37 cm x 37 cm
Gain: 19 dBi

APA-L2419 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.5 GHz and provides superb
performance in IEEE 802.11b/g WiFi and Bluetooth applications. APA-L2419 includes mounting bracket
and hardware for up to 2”OD masts. Made with fiberglass

Feature :
Superior performance
Light weight
All weather operation
Installed for vertical
DC Short lightning protection
Includes tilt and swivel mast mount
In accordance with customer needs to change the color or features




Application :
2.4 - 2.5 GHz ISM Band
IEEE 802.11b, 802.11g, 802.11n Wireless LAN
Directional and multipoint applications
Bluetooth
Public Wireless Hotspot
WiFi, RFID
Wireless Video Systems



Specification :

Model APA-L2419
Frequency 2.4-2.5GHz
VSWR ≦ 1.5
Gain 19dBi
Polarization Vertical or Horizontal
Power Handling 50 Watts
Impedance 50 Ω
Beamwidth
H: 17° / V: 17°

Connector N-Female
Operating Temp. -40℃ ~ +80℃
Dimension (mm*mm) 370*370
Mounting 32 ~ 45 mm
Weight 1030g


Mounting Kits & Accessories:

The Alfa CFD200 is made from solid bare copper wire with Gas Injected Foam
