Splicer Machine SUMITOMO-Z1C

Warranty one year

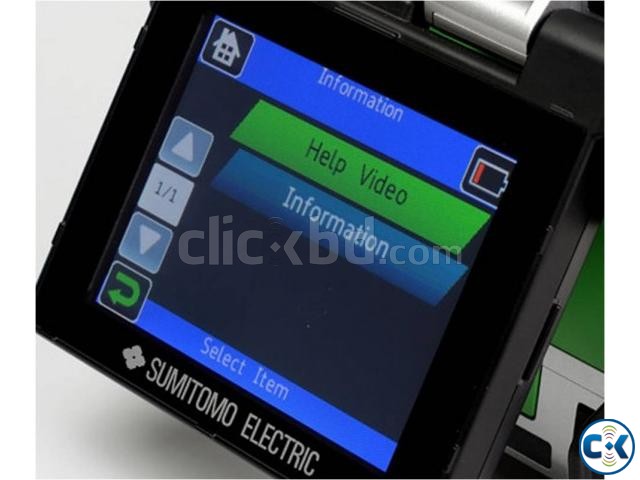

The Sumitomo’s Z1C is the future of splicing machine market due to its following features ultra fast splicing (7 sec), ultra fast heating (28 sec), low on its maintenance, touch screen, user friendly, universal clamps, automatic arc calibration, low weight, high data storage, shock resistance, water resistance, dust resistance, 64 images/10000 data storage capacity, provide 200* splice & heat cycle, remote upgradation, 300 splicing programs and 100 heating programs etc.

The fiber profile supported by Z1C are SMF (ITU-T G.652), MMF (ITU-T G.651). DSF (ITU-T G.653), NZDSF (ITU-T G.655). Z1C has a cladding diameter of 80 µm – 150 µm with a coating diameter of 100 µm – 1,000 µm. The cleave length of 81C is 5 – 16 mm. It can work at an altitude of 6,000m at temperature of -10 ~ + 50 ° C and 95 % of humidity.

Other Information
• Pay Mode Terms: L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Bank Transfer), Western Union
• Minimum Order Quantity: 1 Piece
• Port of Dispatch: New Delhi
• Production Capacity: 1
• Delivery Time: 5days
• Packaging Details: 1Box per machine with accessories
