Thermaltake TR2 Series TR- 500W V2.3 Bronze

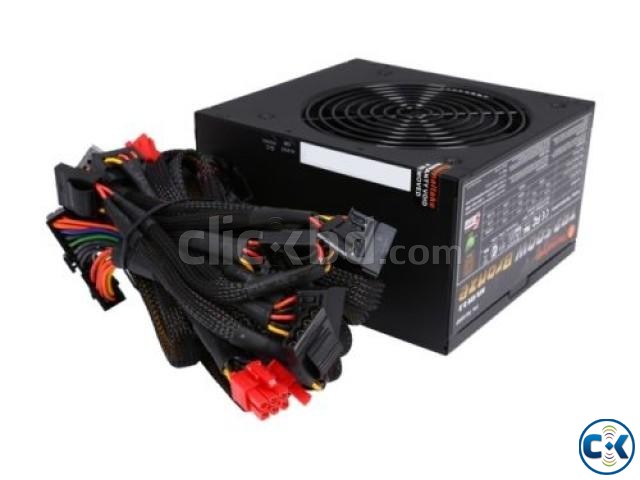

Thermaltake TR2 Series TR-500P 500W V2.3 & EPS 12V 2.91 80 PLUS BRONZE Certified Active PFC Power Supply

Thermaltake

Model

TR-500P

Series

TR2 Series

Details

Type

V2.3 & EPS 12V 2.91

Maximum Power

500W

Fans

1 x 120mm Fan with RPM Control Management

PFC

Active

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

1 x 6-Pin, 1 x 6+2-Pin

SATA Power Connector

5

Modular

No

Power Good Signal

100-500ms

Hold-up Time

17msec (minimum) @ ull load at 115Vac / 230Vac inpu

Efficiency

Up to 88%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Input Current

7A - 3.5A

Output

+3.3V@24A, +5V@24A, +12V@36A, [email protected], [email protected]

MTBF

>100,000 Hours

Approvals

UL/CUL, TUV, CE, FCC, CB, GOST, BSMI Certified

Dimensions

150mm(W) x 86mm(H) x 140mm(L).

Features

Connectors

1 x Main connector (24Pin)

1 x 4+4 Pin ATX 12V

5 x Peripheral

5 x SATA

1 x Floppy

2 x PCI-E

Features

ATX 12V V2.3 enables most reliable and robust power delivery.

Stable 500W continuous output (peak power 600W) @ 40 °C operating environment.

Robust and dedicated single +12V output provides superior performance under all types of system loading.

80 PLUS Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions.

Double-forward switching circuitry offers low power loss and high reliability.

Universal AC input 100V~240V automatically scans and detects the correct voltage.

High quality 105 °C Japanese main capacitor provide uncompromised performance and reliability.

99% Active Power Factor Correction provides clean and reliable power to your system.

Ultra-silent operation with intelligent 12cm cooling fan speed control.

Intel & AMD CPU compliant.

Nvidia & ATI/AMD graphic card compatible.
