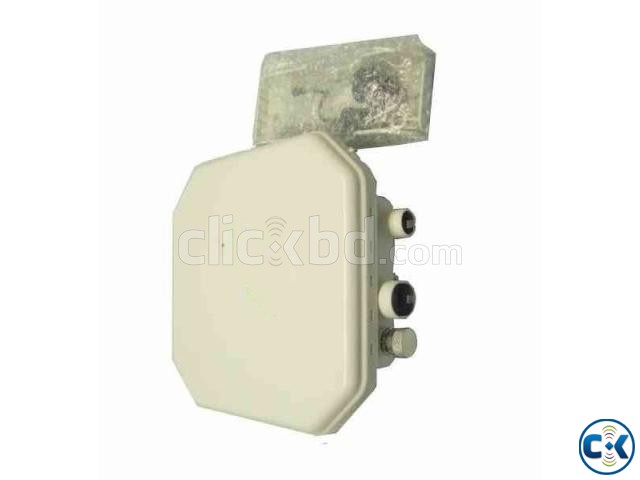

WiMAX™ Antenna (15 KM Range for broadband business)

Physical Interface
LAN 1 x 10/100 Base-T port
WiMAX Features
Standard Compliance IEEE 802.16-2004
IEEE 802.16-2005 Wave-1
Duplex Mode TDD/FDD
Frequency Bands
2.x GHz 2305-2360 MHz
WCS: 2305 - 2315
2350 - 2360 MHz
2495 - 2690 MHz
3.x GHz 3300-3400 MHz
3400-3600 MHz
3600-3800 MHz
Channel Bandwidth 5, 7 (3.5 GHz only), 10 MHz
Modulation QPSK, 16QAM, 64QAM
Transmit Power 19dBm (2.x GHz)
20dBm (3.x GHz)
Antenna Type Embedded Directional Antenna
Antenna Gain 14.5 dBi @ 2.3/2.5 GHz
16.5 dBi @ 3.5 GHz
Authentication EAP-TTLS
QoS BE, eRT, UGS
Networking Features
Device Management Web, TR-069
WAN Static IP, DHCP, PPPoE, L2TP
and PPTP client pass through
VPN IPSec, PPPoE, PPTP & L2TP pass
through
Mechanical Features
Dimensions (HxWxD) 210x210x54 mm
Weight 1.25 kg
Power Source 100-240 VAC, 50-60 Hz
Standards and Regulations
EMC ETSI EN 301 489-1/4
FCC part 15 Subpart B
Radio ETSI EN 301 021 V.1.6.1
ETSI EN 301 753 V.1.2.1
FCC Part 2, FCC Part 15,
FCC Part 90 (3.65-3.7 GHz band)
Safety EN 60950-1 (CE)
UL 60950 (US)
AS/NZS 3260 (Australia/
New Zealand)
Operating Temperature -40 to 55 C (-40 to 131 F)
Humidity 5% to 95% non condensing,
weather protected (ODU)
