Netgate FW-7541 BTO

The first pfSense Certified® system.

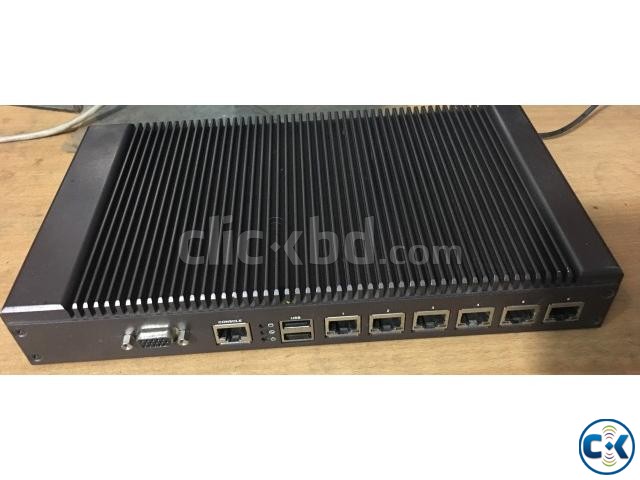

The Netgate FW-7541 fanless network appliance is the first pfSense Certified® system, featuring the flexibility of pfSense as a firewall, LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or other special purpose Appliance.
A portion of this purchase goes directly to support pfSense development. By choosing a pfSense Certified system you financially support open source software and gain peace of mind that this system has been vetted and tested by the pfSense core team at Electric Sheep Fencing (ESF).
One common barrier to choosing and implementing open source software is the availability of prompt, professional support from knowledgeable individuals. ESF eliminates that barrier for FreeBSD-based pfSense users by providing paid support, consulting and development services to the open source community. Free support is also available on the Forums hosted by ESF.


Hardware Specification:
* Form Factor: Desktop
* Processor: Intel Atom Pineview D-525 1.8 Ghz
* Chipset: ICH8M
* System Memory: 2GB of memory. Upgradeable to 4GB.
* OS Supported: Windows, Linux, and BSD ready
* Storage: 1 HDD Bay 2.5" (commercial grade HDD only)
* Hard Drive Interface: Serial ATA x 1, Type II CF x 1
* Networking: 6 GbE ports
* Networking Chipset: Intel 82574L, Intel 82583V
* Console:RJ45 x 1
* USB: 2.0 ports x 2
* Expansion Slot: mini-PCIe x 1
* Cooling: Passive Heatsink
* Environmental:
* Temperature, ambient operating: 0°C ~ 40°C
* Temperature, ambient storage: -20°C ~ 70°C
* Humidity (RH), ambient operating and non-operating: 5% ~ 95%, non condensing
* Internal realtime clock with Li Battery
* Physical Dimensions: 268L x 145W x 40H mm
* Weight: 3.3 lbs without HDD
* Power: 60W AC/DC power adapter
* Power Input: AC 100-240V ~1.6A at 50Hz~60Hz
* System Input: DC 12V, 5A
* Power Cable: Standard IEC 320 EN 60320 C14 to US Style plug. Other countries may inexpensively source their own power cord.
* Approvals & Compliance: CE Emission, FCC Class A, RoHS, UL
* ECCN: 4A001
