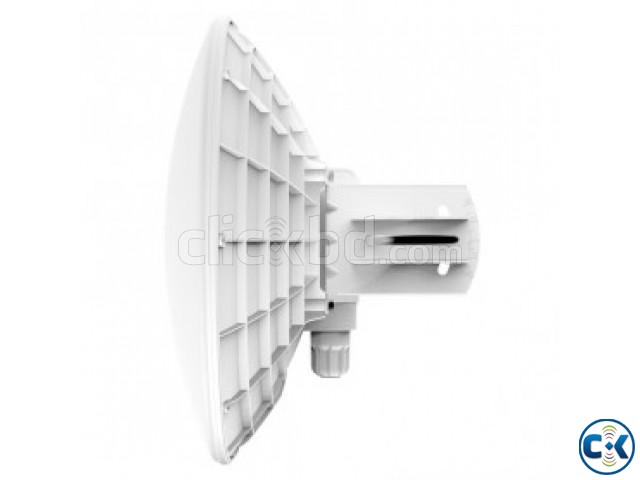

MikroTik DynaDish 5

The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.

New 802.11ac outdoor device
•ideal for long distance point-to-point links
•5GHz dual chain board integrated into 25dBi dish antenna with 8 degree beam width
•720Mhz CPU 300MHz DDR2
•one Gigabit Ethernet port
The antenna is a 8 degree 25dBi dish, and it includes a precise alignment mount, ideal for long range point to point wireless links.

Specifications
Product code
RBDynaDishG-5HacD

CPU nominal frequency 720 MHz

CPU core count 1

Size of RAM 128 MB

10/100/1000 Ethernet ports 1

Wireless Built-in 5 GHz 802.11ac, dual-chain

Antenna gain 25dBi

Antenna beam width 8°

Wireless chip model QCA9882-BR4A-R

PoE in Yes

Supported input voltage
11V - 60V passive PoE or 802.3af/at with unshielded cable

Voltage Monitor Yes

PCB temperature monitor Yes

CPU temperature monitor No

Dimensions Ø 404mm, height 175mm (without mount)

License level 3

Operating System RouterOS

CPU QCA9557-AT4A-R

Max Power consumption 16W

Wireless specifications
RATE
Tx (dBm)
Rx (dBm)



6MBit/s 31 -96



54MBit/s
28
-81



MCS0
30
-96



MCS7
27
-77



MCS9
22
-72
