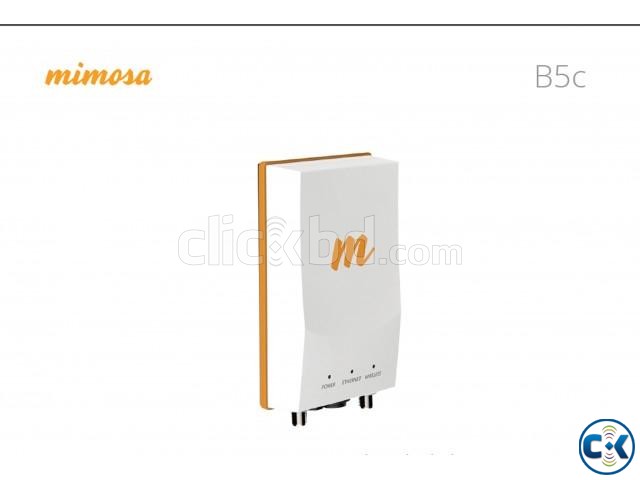

Mimosa B5c

বিস্তারিত জানতে আমাদের সাথে যোগাযোগ করুন
মোবাইলঃ 01915915186,01789162829

Mimosa-B5c Performance

Max Throughput:
Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
•
Low Latency:
< 1 ms in Auto Mode
•
Wireless Protocols:
TDMA, TDMA-FD
Radio
•
MIMO & Modulation:
4x4:4 MIMO OFDM up to 256QAM
•
Bandwidth*:
Single or Dual 20/40/80 MHz channels
•
Frequency Range:
4900 - 6200 MHz restricted by country of operation (‘new’
US/FCC 5600-5650 support)
•
Max Output Power:
30 dBm (2-stream)
27 dBm (4-stream)
•
Sensitivity ( MCS 0 ):
-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
•
Max Power Consumption:
20W
•
System Power Method:
48 V DC 802.3 at compliant power injectors
•
System Lightning & ESD Protection:
6 kV
•
PoE Power Supply:
Passive POE compliant, 48-56 V Power over Ethernet
supply with IEC61000-4-5 surge protection
Physical
•
Dimensions:
Height - 267 mm (10.5”)
Width - 158 mm (6.2”)
Depth - 74 mm (3”)
•
Weight:
1.6 kg (3.5 lbs)
•
Enclosure Characteristics:
Outdoor UV stabilized plastic
Aluminum mounting panel
•
Wind Survivability:
200 km/h (125 mph)
•
Wind Loading:
9.89 kg @ 160 km/h (21.8 lbs @ 100 mph)
•
Mounting:
Dual standard pole straps for 30 mm (1.18”) to 90 mm
(3.54”) OD pipes
•
Connector Type:
Female Type N (x2), intended for use with dual
polarization antenna
Environmental
•
Outdoor Ingress Protection Rating:
IP67
•
Operating Temperature:
-40°C to +55°C (-40°F to 131°F)
•
Operating Humidity:
5 to 100% condensing
•
Operating Altitude:
4,420 m (14,500’) maximum
•
Shock & Vibration:
ETS 300-019-2-4 class 4M5
Features
•
Gigabit Ethernet:
10/100/1000-BASE-T
•
Dual Link Operation:
2 independent dual-stream radios operating on non-
contiguous frequencies
Automatic load balancing of traffic across 4 total MIMO
streams with individual stream encoding up to 256 QAM
•
Management Services:
Mimosa cloud monitoring and management SNMPv2 &
Syslog legacy monitoring HTTPS HTML 5 based Web UI
2.4 GHz 802.11b/g/n radio for local management access
•
Smart Antenna Alignment:
Hands-free dedicated 2.4 GHz Wi-Fi management radio
alignment tool
•
Smart Spectrum Management:
Active scan monitors/logs ongoing RF interference across
channels (no service impact)
Dynamic auto-optimization of channel and bandwidth
use
•
Security:
128-bit AES PSK with hardware acceleration
•
QoS:
Supports 4 pre-configured QoS levels
•
GPS Location:
GNSS-1 (GPS + GLONASS)
•
Collocation Synchronization:
1PPS GPS TX/RX synchronization for collocated co-
channel radios
Adjustable up/downstream bandwidth ratio
Regulatory + Compliance
•
Approvals:
FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE,
ETSI 301 893/302 502
•
RoHS Compliance:
Yes
•
Safety:
UL/EC/EN/ 60950-1 + CSA-22.
