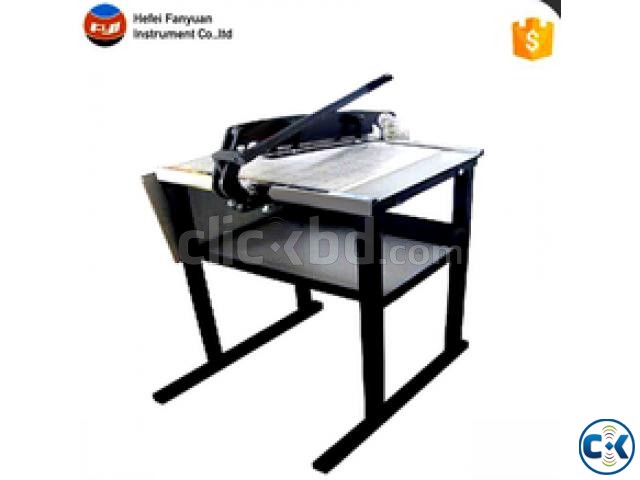

Introducation Swatch Cutter is an accurate & convenient Equipment for preparing swatches with pinking edges in multiple layers to a depth of 20 mm (0.8”) and width of 300 mm (12”). Equipment Swatch Cutter is a user friendly versatile Swatch Cutting Machine for making swatches upto 300mm (12”) wide quickly & conveniently. The specially designed Equipment can cut swatches in multiple layers up to a depth of 20mm. It can make samples out of any type of fabric (woven/knitted or non woven) with the special imported Italian scissor. The equipment is mounted on a strong & sturdy table for ease in operation. The sample sizes can conveniently determined by the graduated screen fixed on the fabric guide bar. The cutting area is fully protected by a transparent acrylic sheet for safety, which also helps the operator to view the cutting operation. The specially designed cutting board is provided to support the sample to cut & long life of the blade. A specially designed long handle is attached with the equipment for smooth cutting with minimum operator fatigue. The equipment is meticulously finished in blue & grey paint to give a gorgeous look. Features. - Specially designed equipment to prepare swatches of different size & design.
- Sample up to 300mm width & any length can be cut.
- Depth of the sample up to 20mm can easily be cut.
- A sturdy Wooden stand to keep the equipment stable during operation.
- Smooth precision-engineered components for exceptional performance.
- Pinking blade tip gives excellent look of swatches prepared.
- A Calibrated scale is provided to prepare sample of different sizes as required.
- Supplied with inspection certificates.
Technical Specification | | Cutting Width | 300 mm | Cutting Height | 20 mm | Dimension of the cutting pad | 300 x 300 mm (±2 mm) | Graduated Scale | 32 Cm. on left side & 27 Cm. on right side; From the “0” | Position (cut position) L/C | 1 mm | Dimension of the Instrument (Including Table) | 700 (L) x 600 (W) x 1295 (H) mm | Dimension of the Instrument (Excluding Table) | 600 (L) x 600 (W) x 560 (H) mm | Net Weight of the Instrument | 32 Kg. (71 lb) | Net Weight of the Table : | 21 Kg. (46 lb) | Supplied Complete with below Accessories. | | Main Unit | 01 No. | Sturdy Table (Fitted or Dismantled Position) | 01 No. | Special Cutting Mat/ Board (Made in Italy) | 01 No. | Double End Spanner – (13-13) | 01 No. | Double End Spanner – (10-10) | 01 No. | This User’s Manual | 01 No. | Inspection & Conformance Certificate | 01 No. | | Item Specifications Warranty Period | : | One Year | Stock | : | In Stock | Discount | : | No | Accessories | : | Available | Product | : | Available | Delivery Charge | : | 500 | Thanks & Best Regards, Sagartex International Mr. Sujan Debnath (Sales Coordinator) Hotline One: +880 1718 555596 (WhatsApp) Hotline Two: +880 1706 643075 (WhatsApp) Telephone: +88-02-55096626 WeChat: sujansuja Skype: bm2020shuvo Address: City Axis Jahanara, Plot-68 (1st Floor), Road-03, Sector-14, Uttara, Dhaka-1230, Bangladesh. E-mail One: [email protected] E-mail Two: [email protected] Web: www.sagartexbd.com |
