8PON EPON OLT with 10G uplink

Model:BD-OLT-8000U

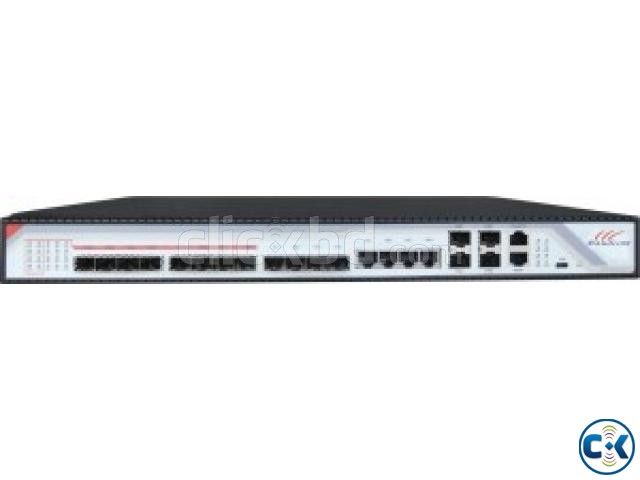

BD-OLT-8000U is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.

BD-OLT-8000U provides 1 USB interface, 4GE(copper) and 4GE optical interface, 4*10Gb uplink interface, and 8 EPON ports for downstream. It can support 512 ONUs under 1:64 splitter ratio.

Item

BD-OLT-8000U

Chassis

Rack 1U 19 inch standard box
Uplink Port

QTY 12
Copper
10/100/1000M auto-negotiable,RJ45:4pcs

Optical interface 4 GE
10Gb uplink interface 4*10Gb
PON Port

QTY 8
Physical Interface SFP Slots
Connector Type 1000BASE-PX20+
Max splitting ratio 1:64
USB Port

QTY 1
Connector Type Type-C
Management Ports 1*100BASE－TX outband port; 1 CONSOLE port
PON Port Specification

（Apply to

Baudcom PON module）

Transmission Distance 20KM
PON port speed Symmetrical 1.25Gbps
Wavelength 1490nm TX,1310nm RX
Connector SC/PC
Fiber Type 9/125μm SMF
TX Power +2.5～+7dBm
Rx Sensitivity -27dBm
Saturation Optical Power -6dBm
10Gb SFP+ Port Specification

（Apply to Baudcom 10Gb module）

Transmission Distance 10KM
PON port speed 8.5-10.51875Gbps
Wavelength 1310nmTX，1310nmRX
Connector LC
Fiber Type Single mode with dual fiber
TX Power -8.2~+0.5 dBm
Rx Sensitivity -12.6dBm
Management Mode

SNMP, Telnet, CLI management mode.
Management Function

Fan Group DetectingPort Status monitoring and configuration management;
Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;

EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU configuration and management

User management

Alarm management

Layer-two Switch

Support port VLan and protocol VlanSupport Vlan tag/Untag ,vlan transparent transmission;
Support 4096 VLAN

Support 802.3dd trunk

RSTP

QOS based on port ,VID,TOS and MAC address

IGMP Snooping

802.x flow control

Port stability statistic and monitoring

EPON Function

Support port-based rate limitation and bandwidth control;In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support dynamic distance calculation on EMS online

Support RSTP,IGMP Proxy

Layer-three Route

Support static unicastSupport static multicast
Support RIP routing protocol

Support dynamic multicast protocol with active source

Backplane Bandwidth 112G
Dimension 440*296*44(mm*mm*mm）
Weight 4.50kg
Power Supply 220VAC AC: 100V～240V，47/63Hz
-48DC DC:-36V～-72V
Power Consumption 58W
Operating Environment Working Temperature 0～50℃
Storage Temperature -40～85℃
Relative Humidity 5～90%(non-condensing)
