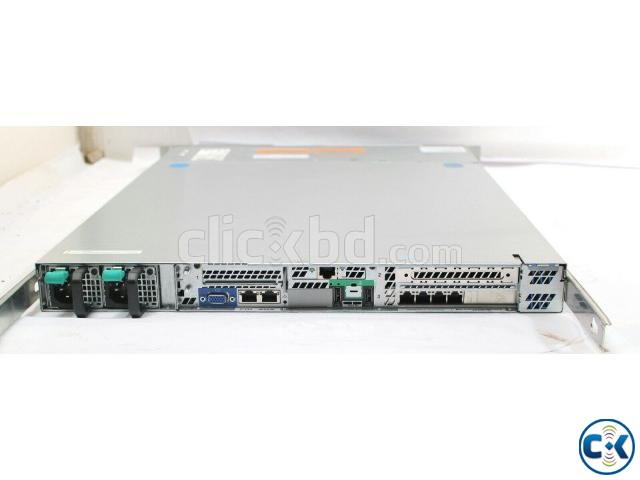

Firewall for protecting the internal computer network Application Manager Riverbed SteelHead CXA-03070-B110,
Brand: Riverbed SteelHead
Manufacturer: Riverbed Technology Inc., USA
Mobile : 008801738246889
Email: [email protected]
SteelHead CX: Model Specifications, continued
Large Office or Data Center SteelHead
Model CX3070 Series CX5070 Series CX7070 Series
Configurations L M H M H L M H
Profile 1U 2U
Upgradeable To 3070-M/H 3070-H - 5070 H - 7070-M/H 7070-H -
Optimized TCP Connections & UDP
Flows 3,000 6,000 9,000 16,000 30,000 80,000 110,000 180,000
Optimized SSL/TLS Connections
Optimized WAN Capacity(a) 50 Mbps 100 Mbps 200 Mbps 400 Mbps 622 Mbps 1 Gbps 2 Gbps(h)(i)
Network Services - WAN Capacity(b) 250 Mbps 500 Mbps Unrestricted
Network Services - Flows(d) 48,000 96,000 192,000 256,000 512,000
Network Services - Rules/Classes(e) 2,000 4,000
Data Store Capacity 320 GB SSD 960 GB SSD 1.8 TB SSD 2.4 TB SSD 4.8 TB SSD
Web Proxy Cache Capacity 200 GB 300 GB 400 GB
Storage Fault Tolerance RAID(f) RAID(f)
Hot Swappable Drives 4 8 8 10 18
RAM (j) 12 GB 24 GB 48 GB 64 GB 128 GB
Expansion Slots (PCI-e)(g) 2 4
Included Bypass Ports (Copper) 4 4
Max. # of Bypass Ports 12 20
SteelHead SD Capable Yes No
NOTE: All WAN capacities, connections, flows and rules/classes specifications listed are maximums and may not be achieved simultaneously and/or in all environments.
(a) Optimized WAN capacity limit is enforced on outbound optimized traffic. Inbound optimized WAN traffic is not capped.
(b) Maximum outbound WAN throughput. For SteelHead SD models the WAN Capacity is equivalent to VPN throughput performance.
Full VPN throughput spec for SteelHead SD 3070M/H models may not be achievable in all environments.
(c) RiOS 8.6.2b or later.
(d) Inclusive of all optimized and/or managed flows.
(e) Maximum number of classes plus rules. Not applicable to SteelHead SD models .
(f) RAID1 configuration for HDD, Data store uses fault tolerant striped (FTS) configuration for SSD.
(g) Optional Network Bypass cards: Dual and Quad LX and SX GigE Fiber GigE, Quad Copper GigE, 10GbE SR/LR
(h) No enforced optimized WAN bandwidth limit.
(i) 7070-H WAN capacity is specified at up to 2 Gbps for Branch-to-Data Center workloads and up to 3 Gbps for Data Center-to-Data Center workloads.
(j) SteelHead SD models have a larger RAM size: CX 570 = 8GB, CX 770 = 12GB, CX 3070 = 16GB.
