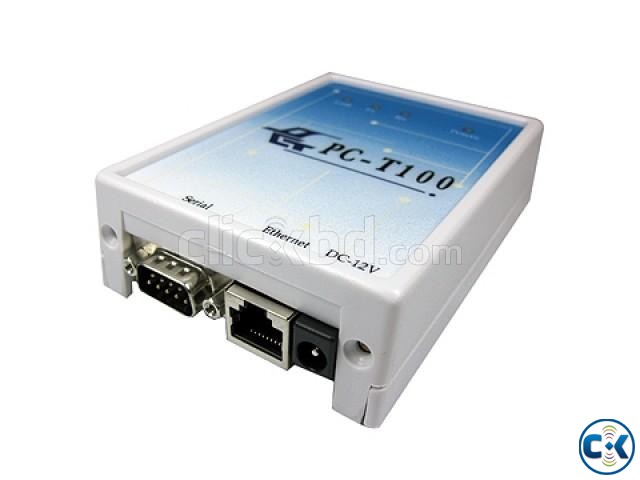

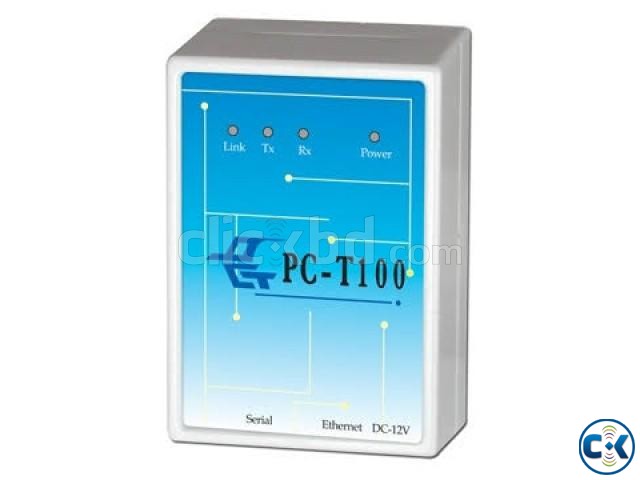

Serial to TCP/IP Ethernet Converter(PC-T100) RS232 to Ether

Serial to TCP/IP Ethernet Converter(PC-T100) RS232 to Ethernet converter.

• Network protocols include TCP, UDP, IP, ARP, ICMP, Ethernet MAC.
• Configuration setup can be performed through the internet (IE & Netscape HTTP browser setup).
• Convert RS -232C / RS-485 / RS-422 serial interface to Ethernet interface.
• Four LEDs display status information: SYS(PWR), LAN Speed, LAN Rx, LAN Tx.

Inquiry

Product Description
•Support data remote download.
•Network protocols include TCP, UDP, IP, ARP, ICMP, Ethernet MAC.
•Convert RS -232C / RS-485 serial interface to Ethernet interface.
•Four LEDs display status information: SYS(PWR), LAN Speed, LAN Rx, LAN Tx.
•With watch dog function.
•Easy installation for wall, desktop or any where mounting.

Auto-detecting Ethernet :
•Connector type: RJ-45 (Female).
•Speed : 10 / 100 Mbps.
•Protocol : TCP, UDP, IP, ARP, ICMP, Ethernet MAC.
•Mode : TCP Server/Client ; UDP Client : Broadcast.

Serial Port :
•Port : RS -232C / RS-485
•Speed : 300bps ~ 921,600 bps.
•Connector type : DB9 (Female).
•RS-232 : TxD, RxD, R TS , C TS , DTR, DSR, GND.
•RS-485 : Data A, Data B.

Specifications
•Dimensions(LxWxH): 115 x 78 x 31mm / 4.5 x 3.1 x 1.2inch
•Enclosure material: ABS
•Power supply: 12V DC, 150mA
•Operation temperature: -15°C ~ 55°C
•Humidity: 10%~90%
•OS: Windows XP / 7 / 8 / 10
