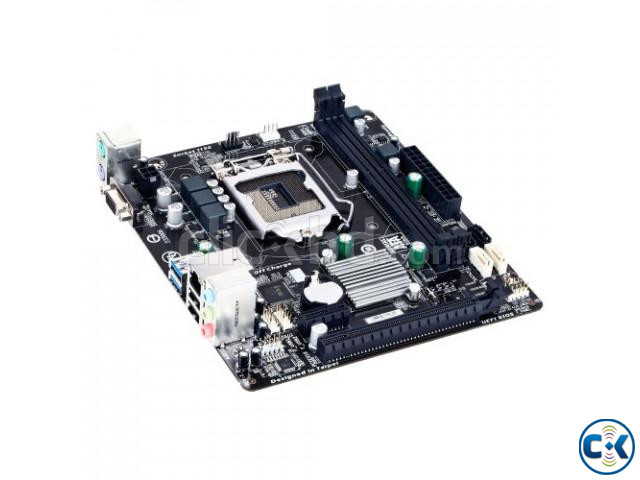

Gigabyte Genuine H81M-S 4th Gen Intel Motherboard

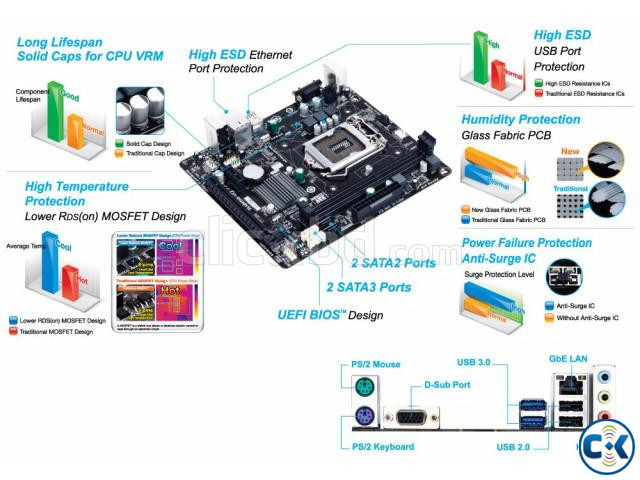

Features

Model: Gigabyte H81M-S
Supports 4th Generation Intel Core processors
LAN with high ESD Protection
Gigabyte Ultra Durable Technology
Solid capacitors for CPU VRM design

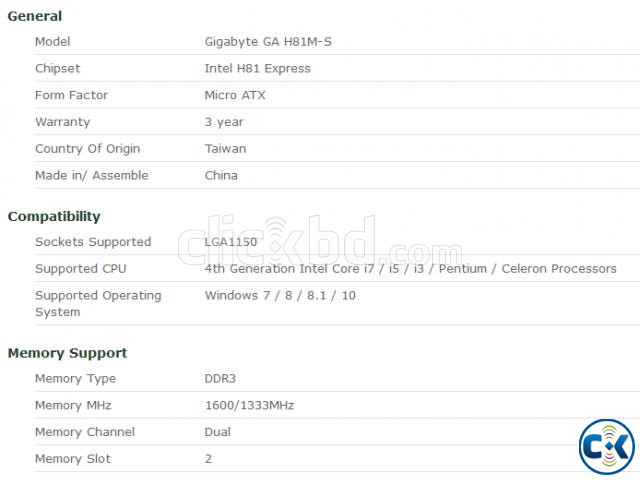

Specification:
Basic Information
Supported CPU Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
Chipset Intel H81 Express Chipset
BIOS 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 19.0cm x 17.0cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
Memory
Type Dual Channel Architecture
Slots 2 x DDR3 DIMM sockets
Supported Memory Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 16 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory 1 GB

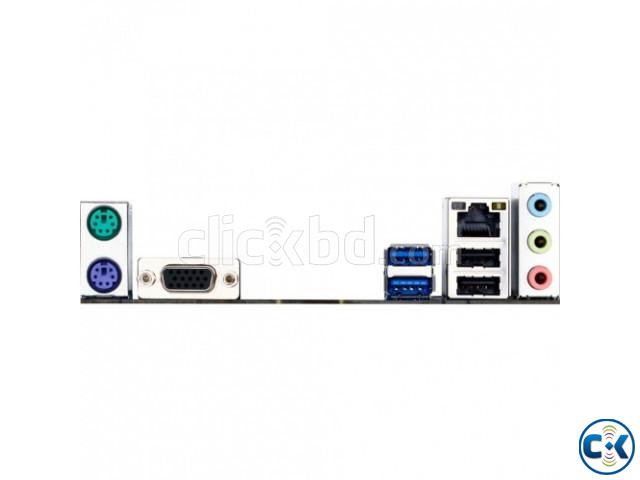

Connector & Ports
USB (s) 2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
1 x RJ-45 port
Supported Storage 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1)
2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3)
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x speaker header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port
Warranty Information
Manufacturing Warranty 3 Years
Others
Special Features Support for Q-Flash
Support for Xpress Install
Support for APP Center
@BIOS
EasyTune
EZ Setup
USB Blocker
Support for ON/OFF Charge
Description :
Gigabyte H81M-S 4th Gen Intel Motherboard

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. Humidity can play havoc on a motherboard's circuitry.
