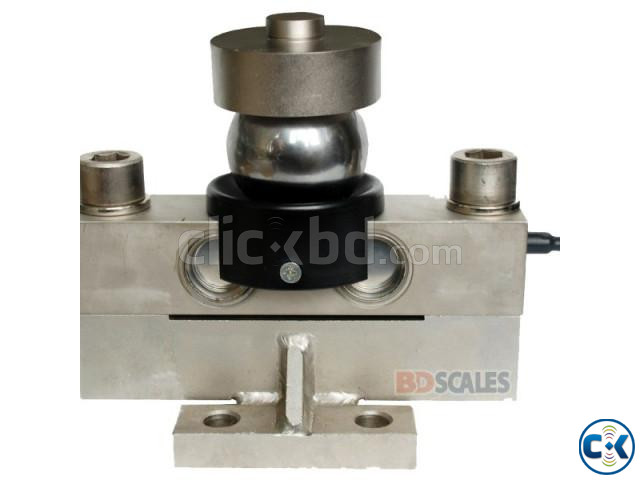

Zemic Suiioble for Dusl & water proven (lP 65)2mv/v Zemic 40 ton HM9B load cell for truck scaleOverview Specifications Place of Origin: China (Mainland)Brand Name: ZemicModel Number: HM9BUsage: Consumption SensorTheory: Resistance SensorOutput: Analog Sensoriterm: Zemic 40 ton HM9B load cell for truck scale Packaging & Delivery Packaging Details: OIML weighing scale parts load cell price package :cartons and palletDelivery Detail: 15 working days since the payment Zemic 40 ton HM9B load cell for truck scale Products specification 1.HM9B load cell are available in the capacities 10t to 50t.
2.Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas. The heart of any weighing system is the load cell. A load cell is an electrical instrument which is used to convert a mechanical force into an electrical output signal. The terminology for load cells can be found in the OIML R60 regulation for load cells. Load cells are highly accurate transducers which provides the user with information not generally obtainable by other technology due to commercial factors. Load cells are designed to sense force or weight under a wide range of adverse conditions. They are not only the most essential part of an electronic weighing system, but also the most vulnerable. In order to get the most benefit from the load cell, the user must have a thorough understanding of the technology, construction and operation of this unique device. In addition, it is imperative that the user selects the correct load cell for the application and provide the necessary care for the load cell during its lifetime. Understanding these important issues and properly maintaining the load cells will ensure trouble-free weighing for a long period of time. OIML shear beam load cell Specifications | Capacity | t | 10/20/25/30/40SE/40/50 | | Accuracy | | C1 | C2 | C3 | A5M | B10M | | Approvals | | | | OIML R60 C3 | | | Maximum number of
verification intervals | n max | 1000 | 2000 | 3000 | 5000 | 10000 | Minimum load cell
verification interval | v min | Emax/3000 | Emax/5000 | Emax/7500 | Emax
/15000 | Emax
/10000 | Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 | Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 | Temperature effect
on sensitivity | (%FS/10℃) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 | Temperature effect
on zero | (%FS/10℃) | ≤±0.047 | ≤±0.023 | ≤±0.015 | ≤±0.014 | ≤±0.020 | Output sensitivity | (mv/v) | 2.0±0.002 | 2.3±0.002 | 2.4±0.002 | 1.9±0.002 | 1.8±0.002 | Input resistance | (Ω) | 700 ±7 | 775 ±5 | 750 ±7 | Output resistance | (Ω) | 700 ±7 | Insulation resistance | (MΩ) | ≥ 5000(50VDC) | Zero balance | (%FS) | 1.5 | Temperature, compensated | (℃) | -10~+40 | Temperature,allowed | (℃) | -35~+65 | Excitation, Recommended | (V) | 5~12(DC) | Excitation,Max | (V) | 18(DC) | Safe overload | (%FS) | 150 | Ultimate overload | (%FS) | 300 |
|
