LED Display Indicator-China

Packaging & delivery
Selling Units:
Single item
Single package size:
50X27X22 cm
Single gross weight:
21.000 kg
Picture Example:

Lead time:
Quantity(pieces) 1 - 100 101 - 200 >200
Lead time (days) 10 15 To be negotiated

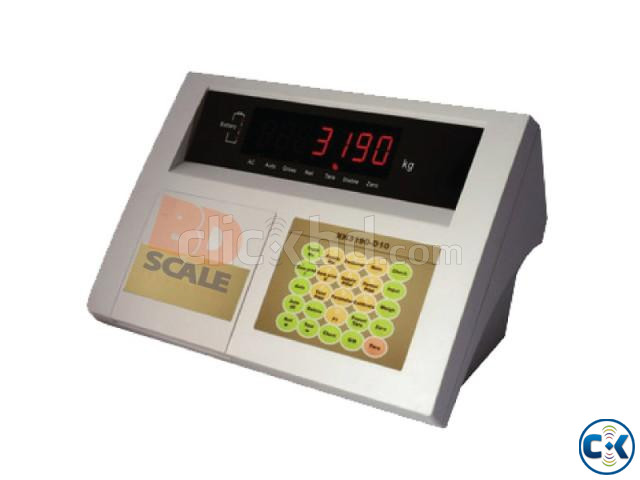

Weighing indicator XK3190-A9+ adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scale,electronic truck scale and so on alike static weighing system equipped with 1~8 load cell.

Feature:
Compatible with all functions of model XK3190-A9;
∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV
Good consistency, no need to re-calibrate a scale if change the former indicator, high precision
DC power socket with anti-connect and anti-short circuit protection;
With strong anti-disturbance function
Standard function
AC/DC power supply, standard chargeable battery
7-bits 0.8 inch LED display, 3-level battery indications
Able to setup zero-tracking range, zero(auto/manual) range
With 2-point calibration correction function, 2 compensation calibration methods
Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 201 records of goods
Able to print across and upright weighing bill
Able to print different statistical reports
Standard RS232 communication interface(RS422/RS485 optional)
Standard scoreboard interface with current loop
Standard parallel print interface
Able to connect assigned thermal printer
XK3190-A9+P with built in printer
Technical parameter
A/D conversion method: ∑-Δ
Input signal range:-16mV~18mV
A/D conversion speed: 10times/sec.
A/D conversion code: 1 million code
Load cell excitation: DC 5V
Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm
Load cell connection mode: 6 wire, auto compensation for long distance
Division: 1/2/5/10/20/50/100 optional
Clock: real clock without effect when power off
Transimission: current loop/RS 232 signal
Baud rate:600
Transimission distance:≤30 meters
Serial communication:interface
Transimission method:RS232/RS422(optional)/RS485(optional)
Baund rate:600/1200/2400/4800/9600(optional)
Transmission distance:RS232:≤30 meters;RS422/RS485:≤1200 meters
Print interface
Standard parallel output interface
Built-in micro-printer(A9+P)
Data storage:1000 truck records consisting of truck ID and corresponding tare weight 201cargo ID.1001 weighting records
Power supply:AC 220V(-15%-+10%);50Hz(-2%-+2%)
DC 6V/10Ah External battery rechargeable.
