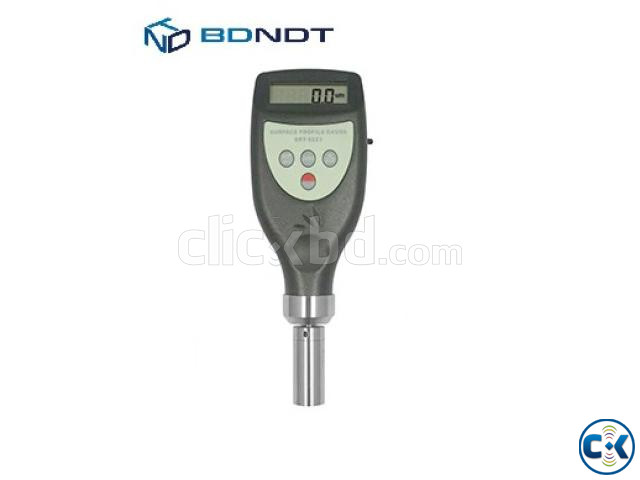

Digital Surface Profile Gauge for Sand Blasting

Specially used to take accurate measurement of the peak-to-valley height of the surface profile of the surface profile of blast cleaned surfaces.

Display : 4 digits, LCD"

Range: 0 µm to 800 µm (0 mils to 30 mils)

Accuracy: ±5% or ±5 µm,(whichever is the greater)

Resolution: 1 µm (0.1 mils)

Metric and Imperial switchable

PC interface: RS232C

Measurement speed: >30 readings per minute

Weight: 280 g

Dimensions: 162 x 65x 28 mm (6.4 x 2.6 x 1.1 inch)

Operating temperature: 0C to 50C, <80%RH

Case: High impact ABS

Batteries: 4 x 1.5v (AAA) battery( Not included )

Standard accessories included :
Carrying case: 1 pc.
Operation manual 1 pc.
Optional accessory: Cable and software for RS232C
