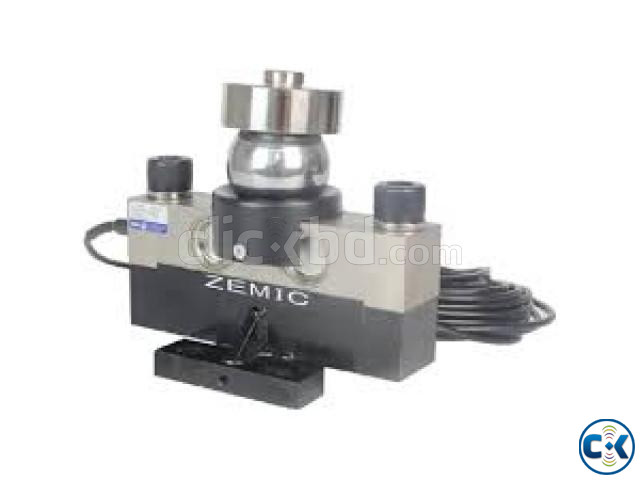

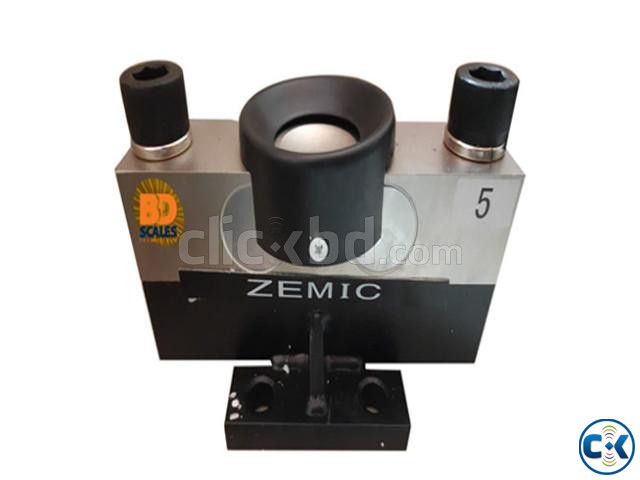

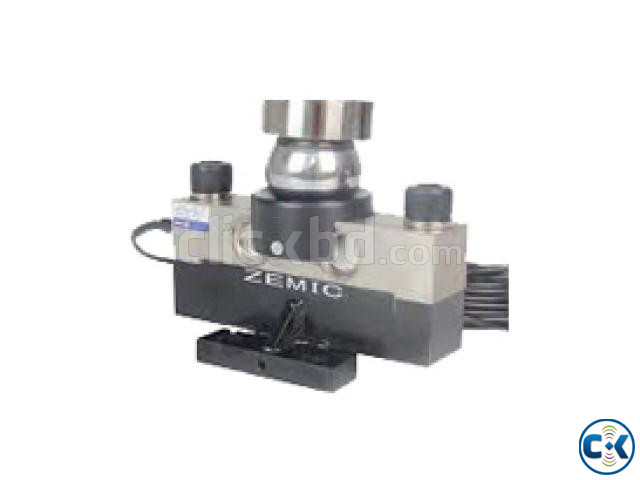

Digital Load Cell 40 Ton Zemic

Products specification

1.HM9B load cell are available in the capacities 10t to 50t.

2.Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.

3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.

4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

 OIML shear beam load cell Specifications

Capacity          10/20/25/30/40SE/40/50

Accuracy         C1       C2        C3        A5M    B10M

Approvals       OIML R60 C3

Maximum number of verification intervals  n max  1000    2000    3000    5000    10000

Minimum load cell verification interval       v min   Emax/3000      Emax/5000      Emax/7500 Emax /15000            Emax /10000

Combined error          (%FS)   ≤±0.050           ≤±0.030           ≤±0.020           ≤±0.026  ≤±0.050

Creep  (%FS/30min)   ≤±0.038           ≤±0.024           ≤±0.016           ≤±0.017           ≤±0.040

Temperature effect

on sensitivity  (%FS/10℃)      ≤±0.028           ≤±0.017           ≤±0.011           ≤±0.013 ≤±0.040

Temperature effect

on zero           (%FS/10℃)      ≤±0.047
