Load Cell 40 Ton Zemic

Assalamu Alaikum. Welcome everyone from BD Scale. Afforadable Price.

Description

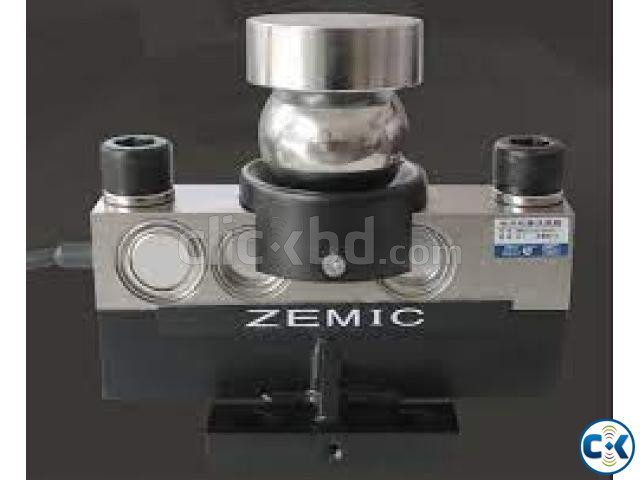

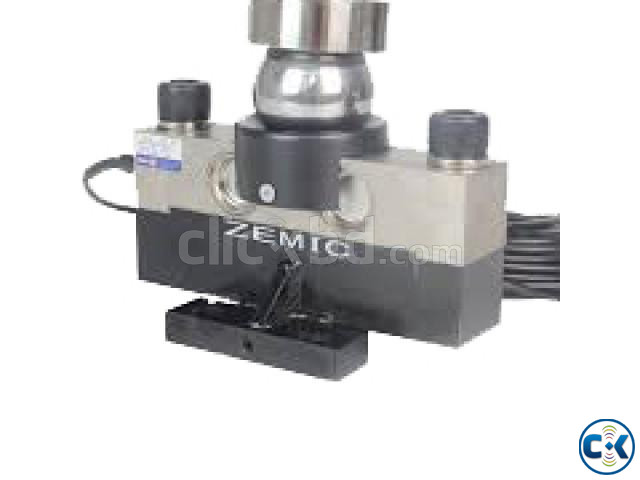

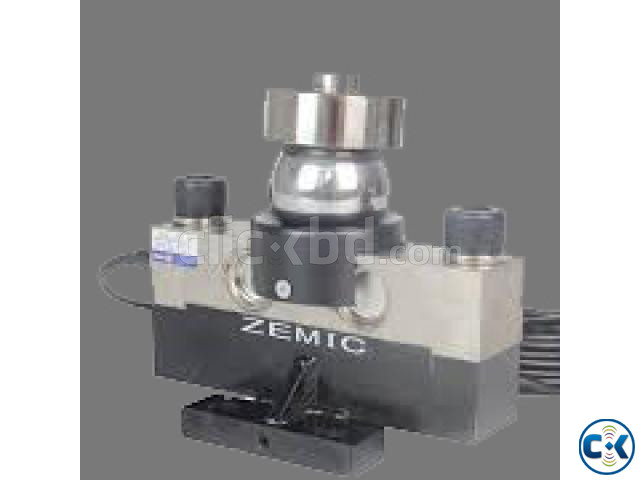

Zemic 40 ton HM9B load cell for truck scale

Quick Details

Place of Origin: China (Mainland)

Brand Name: Zemic

Model Number: HM9B

Usage: Consumption Sensor

Theory: Resistance Sensor

Output: Analog Sensor

iterm: Zemic 40 ton HM9B load cell for truck scale

Products specification

1.HM9B load cell are available in the capacities 10t to 50t.

2.Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.

3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.

4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

 OIML shear beam load cell Specifications

Capacity t 10/20/25/30/40SE/40/50

Accuracy C1 C2 C3 A5M B10M

Approvals OIML R60 C3

Maximum number of

verification intervalsn max 1000 2000 3000 5000 10000

Minimum load cell

verification interval v min Emax/3000 Emax/5000 Emax/7500 Emax/15000 Emax/10000

Combined error (%FS) ≤±0.050 ≤±0.030 ≤±0.020 ≤±0.026 ≤±0.050

Creep (%FS/30min) ≤±0.038 ≤±0.024 ≤±0.016 ≤±0.017 ≤±0.040

Temperature effect

on sensitivity (%FS/10℃) ≤±0.028 ≤±0.017 ≤±0.011 ≤±0.013 ≤±0.040

Temperature effect

on zero (%FS/10℃) ≤±0.047
