New Asus P5QL-Intel 43 Mainboard- HDMI-DVI-1066 DDR-2

Brand New Mainboard- Call 01717-181777 visit; www.nimbusbd.com




Specifications
CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
Chipset Intel® G43 / ICH10
Front Side Bus 1333/1066/800 MHz
Memory 4 x DIMM, Max. 16 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Supports one DIMM per channel only when over-clock to DDR2-1066
*Please refer to www.asus.com or user manual for Memory QVL
"*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
2 x PCI
VGA Integrated Intel GMA X4500 graphics
Maximum shared memory of 1759M
Supports DVI-D with HDCP compliant with max. resolution 1920x1200 (@ 60Hz)
Supports HDMI with max. resolution 1920X1080(@ 60Hz)
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10
Dual VGA output support:
DVI & HDMI
DVI & RGB
RGB & HDMI
Storage Southbridge
6 xSATA 3 Gb/s ports
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100

LAN RTL8112 PCIe Gb LAN
Audio ALC887 8 -Channel High-Definition Audio CODEC
Optical S/PDIF output
Support Jack Detection and Multi-streaming
USB 12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features ASUS AI Lifestyle
- ASUS Express Gate

ASUS Quiet Thermal Solution
- ASUS Q-Fan 2

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Turbo Key
- AI NET2
- ASUS EPU 4-Engine
Overclocking Features SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

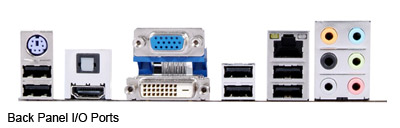

Back Panel I/O Ports 1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x HDMI
1 x S/PDIF Out (optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors 3 x USB connectors (6ports)
1 x IDE connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
COM connector
System Panel connector
1 x LPT connector
CD audio in
1 x 24-pin EPS12V Power connector
4-pin ATX 12V Power connector
BIOS 8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x UltraDMA 133/100/66 cable
1 x SATA cable
I/O Shield
Support Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Form Factor uATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
