GEPON OLT Equipment 2PON Ports+2 GE Auto-adapative RJ45 Port

XDK-E8012T

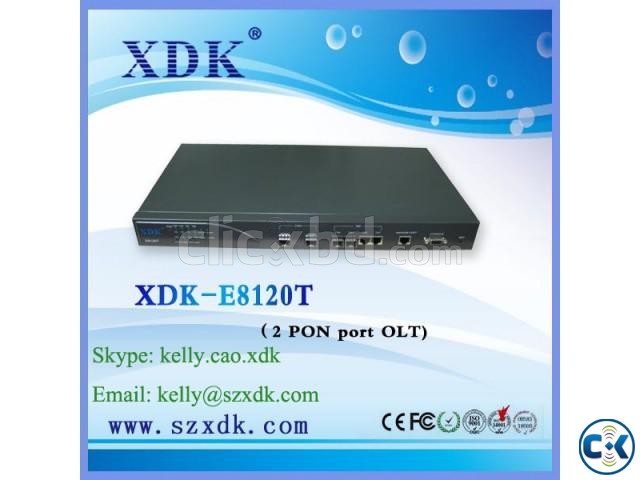

XDK-E8120T 2PON port OLT Fiber network equipment GEPON OLT for CATV IPTV
Broadband business, it conforms to IEEE802.3-2005 standard.


Product features:
Highly reliable case, strong adaptive capacity to environment
1U case,Good shielding measures.

Layer 2 aggregation switching
Layer 2 wire-speed forwarding; support rich layer 2protocols
4K MAC address list
Uplink port supports electronic port modules and optical port modules,
which can be configured flexibly as required

Perfect network management function
Support GUI based graphical interface.
Support in-band management, out-of-band management
Support online upgrade of device software

Strong QOS function
Support flexible DBA, uplink and downlink traffic rate-limited
Support IP ToS, IEEE802.1p
Port based traffic control, traffic shaping.
Supports up to 256 LLID.

l Rich OAM function
Support ONU automatic identification, automatic finding, and automatic
registration
Support the function of automatic loop back test to single link
Strong VLAN function, including VLAN Stacking, Trunk,Translation
Support flexible controllable multi casting, support IGMP snooping

Port features:
2 PON ports (1.25G)
2uplink ports (1G) (electronic ports and optical ports options)
1management ports (special software management)
1console port

Physical features:

Frame:19 inches 1U height
Dimension: 440×207×43.6 (L×W×H,unit: mm)

Power supply: AC 100-240V
Power consumption: 20W

Temperature:
Working temperature: 0~45°C
Storage temperature: -30~60°C
Relative humidity: 10~90% (non-condensing)
